Introduction
In the world of radio communication, antennas play a crucial role in transmitting and receiving signals. Among the various types of antennas available, the Yagi antenna, also known as the Yagi-Uda antenna, stands out as one of the most popular and effective directional antennas. This blog will delve into the intricacies of the Yagi antenna, exploring its design, functionality, advantages, and applications. Whether you’re a radio enthusiast, a professional in the field, or simply curious about how these antennas work, this guide will provide you with a comprehensive understanding of the Yagi-Uda antenna.
What is a Yagi Antenna?
The Origins of the Yagi-Uda Antenna
The Yagi antenna, named after its inventors Hidetsugu Yagi and Shintaro Uda, was first introduced in the 1920s. This directional antenna was designed to improve the efficiency of radio communication by focusing the signal in a specific direction, thereby increasing both transmission and reception capabilities. Over the years, the Yagi-Uda antenna has become a staple in various communication systems, from amateur radio to television broadcasting.

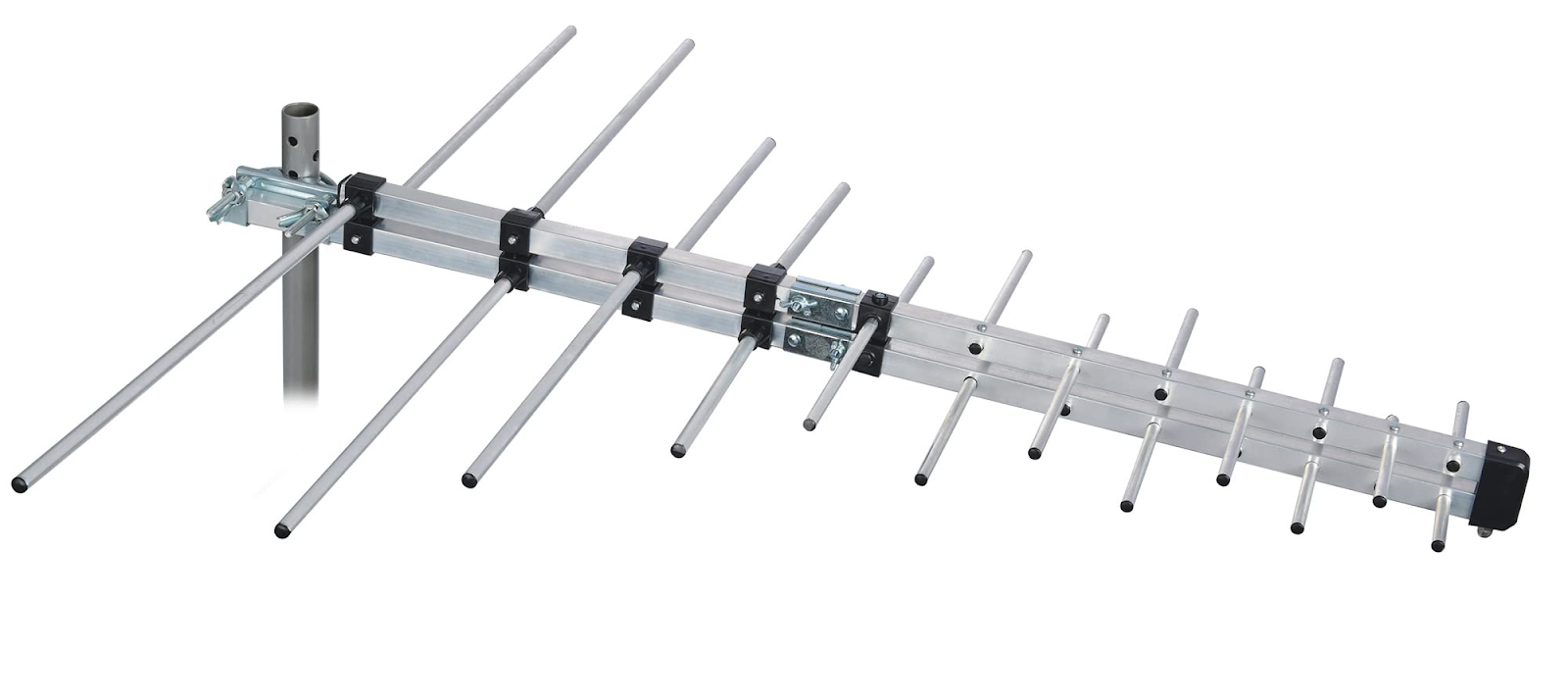

Basic Structure of a Yagi Antenna
A typical Yagi antenna consists of several key components:
- Driven Element: This is the only element in the antenna that is directly connected to the transmission line. It is responsible for radiating the radio waves.
- Reflector: Positioned behind the driven element, the reflector is slightly longer than the driven element. Its primary function is to reflect the radio waves towards the front of the antenna, enhancing its directional capabilities.
- Directors: These are shorter elements placed in front of the driven element. They help to further focus the radio waves in the desired direction, increasing the antenna’s gain.
The combination of these elements allows the Yagi antenna to achieve high directivity and gain, making it an excellent choice for long-distance communication.
How Does a Yagi Antenna Work?
The Science Behind Directional Yagi Antennas
The Yagi-Uda antenna operates on the principle of electromagnetic wave propagation. When an electrical signal is applied to the driven element, it generates radio waves that propagate through the air. The reflector and directors work together to shape the radiation pattern of these waves, focusing them in a specific direction.
The reflector, being longer than the driven element, creates a phase delay that causes the radio waves to be reflected towards the front of the antenna. The directors, on the other hand, are shorter and create a phase advance, further concentrating the waves in the desired direction. This combination of reflection and concentration results in a highly directional radiation pattern, allowing the Yagi antenna to transmit and receive signals over long distances with minimal interference.
Gain and Directivity
One of the key advantages of the Yagi antenna is its high gain and directivity. Gain refers to the antenna’s ability to focus energy in a particular direction, while directivity refers to the concentration of the radiation pattern in that direction. The Yagi-Uda antenna’s design allows it to achieve both high gain and directivity, making it ideal for applications where long-range communication is required.
Advantages of Yagi Antennas
High Gain and Directivity
As mentioned earlier, the Yagi antenna’s high gain and directivity make it an excellent choice for long-distance communication. This is particularly useful in applications such as television broadcasting, amateur radio, and wireless communication systems.
Compact Design
Despite its high performance, the Yagi antenna is relatively compact compared to other directional antennas. This makes it easy to install and mount, even in locations with limited space.
Cost-Effective
Yagi antennas are generally more affordable than other high-gain antennas, making them a cost-effective solution for both amateur and professional applications.
Low Maintenance
Once installed, Yagi antennas require minimal maintenance. Their robust design ensures long-term reliability, even in harsh environmental conditions.
Applications of Yagi Antennas
Television Broadcasting
One of the most common applications of Yagi antennas is in television broadcasting. The high gain and directivity of the Yagi-Uda antenna make it ideal for receiving over-the-air TV signals, especially in areas with weak signal strength.
Amateur Radio
Amateur radio operators, or “hams,” often use Yagi antennas for long-distance communication. The antenna’s ability to focus signals in a specific direction allows hams to establish reliable connections with other operators around the world.
Wireless Communication Systems
Yagi antennas are also used in various wireless communication systems, including Wi-Fi networks and point-to-point communication links. Their high gain and directivity make them suitable for establishing stable and long-range connections.
Radar Systems
In radar systems, Yagi antennas are used to transmit and receive signals with high precision. Their directional capabilities allow for accurate detection and tracking of objects, making them valuable in both military and civilian applications.
Satellite Communication
Yagi antennas are sometimes used in satellite communication systems to establish links between ground stations and satellites. Their ability to focus signals in a specific direction ensures reliable communication with satellites in orbit.
Choosing the Right Yagi Antenna
Frequency Range
When selecting a Yagi antenna, it’s important to consider the frequency range of the signals you intend to transmit or receive. Different Yagi antennas are designed to operate at specific frequency ranges, so choosing one that matches your needs is crucial for optimal performance.
Gain and Directivity
The gain and directivity of a Yagi antenna will determine its effectiveness in long-distance communication. Higher gain antennas will provide better performance but may also be larger and more expensive. Consider your specific requirements and budget when making your selection.
Environmental Factors
The environment in which the Yagi antenna will be installed can also impact its performance. Factors such as weather conditions, obstructions, and interference should be taken into account when choosing an antenna. For example, if you live in an area with high winds, you may need a more robust antenna that can withstand these conditions.
Installation and Mounting
Finally, consider the installation and mounting options for your Yagi antenna. Ensure that you have the necessary space and equipment to properly install the antenna, and choose a mounting location that provides a clear line of sight to the desired signal source.
Conclusion
The Yagi antenna, or Yagi-Uda antenna, is a versatile and highly effective directional antenna that has revolutionized the field of radio communication. Its unique design, combining a driven element, reflector, and directors, allows it to achieve high gain and directivity, making it ideal for a wide range of applications, from television broadcasting to amateur radio and wireless communication systems.
When choosing a Yagi antenna, it’s important to consider factors such as frequency range, gain, environmental conditions, and installation requirements. By selecting the right antenna for your needs, you can ensure reliable and efficient communication over long distances.
Whether you’re a seasoned professional or a curious beginner, understanding the principles and applications of the Yagi antenna can help you make informed decisions and optimize your communication systems. So, the next time you tune in to your favorite TV channel or establish a long-distance radio connection, you’ll have a deeper appreciation for the technology behind the Yagi-Uda antenna.
